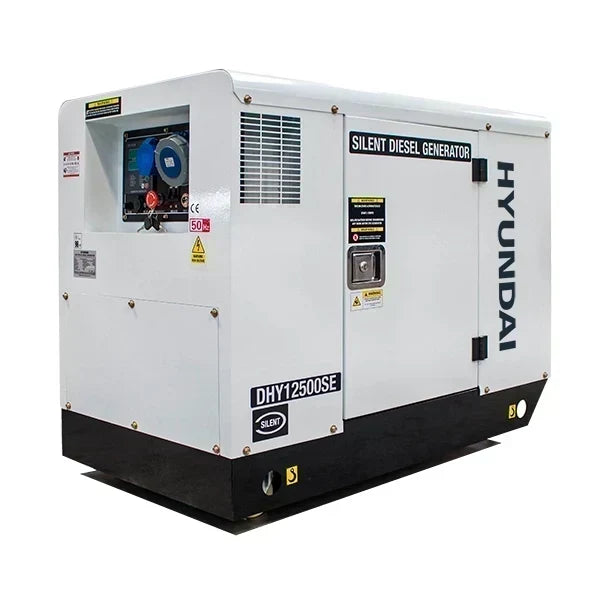

10kW/12.5kVA 230v Mains Standby Silenced Diesel Generator

£229.99

All prices include any applicable taxes · Free UK delivery, 3–6 business days

  • Free UK delivery — 3–6 business days
  • 14 days to change your mind
  • Prepaid return label already in the box
  • Questions? Mon–Fri, 9:00 AM – 5:00 PM UK time

Features:

  • Single-phase backup diesel generator: Produces up to 12.5kVA / 10kW of power
  • Long-run 60L diesel tank: Saves you from having to keep topping up the generator
  • Fitted with an AVR alternator: Produces a smooth, clean energy output
  • ATS compatible: Able to automatically transfer power to the generator in the event of a power cut
  • Low noise generator: Produces 65 to 70db @ 7m
  • Peace of mind: 1 year / 1,000 hours warranty* (terms apply)

Technical Specification:

  • Model - DHY12500SE
  • Rated/Prime kVA* - 12.5
  • Rated/Prime kW - 10
  • Max/Standby kVA* - 13.75
  • Max/Standby kW - 11
  • Phase - Single
  • Voltage - 230
  • Connection Method(s) - Sockets - 1 x 32A, 1 x 63A
  • Rated Speed (RPM) - 3000
  • Frequency (Hz) - 50
  • Max/Continuous Current (Amps) - 47.83/43.48
  • Power Factor (Cosφ) - 1
  • Fuel/Power Source - Diesel
  • Fuel Tank (Litres) - 50
  • Runtime (Hours) @ 100% Load - 12
  • Noise Level @ 1m 75%81.5 load (dB) - 81.5
  • Noise Level @ 7m 75% load (dB) - 70
  • Diesel Engine Model - HY290F
  • Power Output (hp) - 20
  • Engine Displacement (CC) - 954
  • No. of Cylinders - 2
  • Recommended Oil Type - 15w40 / 10w40
  • Oil Capacity (Litres) - 3
  • Oil Filter Part No. - 3049050901800
  • Aspiration - Natural
  • Fuel Regulation/Governor System - Mechanical
  • Fuel Filter Part No. - 3049051001000
  • Cooling Forced - Air-Cooled
  • Breakers - Yes
  • Alternator Type - Brushed
  • Voltage Regulation - AVR
  • Air Filter Part No. - 3049050700303
  • Net Weight (kg) - 270
  • Gross Weight (kg) - 290
  • Wheel Kit? - Yes
  • Dimensions L x W x H (mm) - 1175 x 695 x 1050
  • Battery (Ah) - 45
  • ATS / MTS Compatible - Yes
  • Control Panel - HJ-103A
  • Model EAN - 600231973526
  • Warranty - 1 Year / 1000 Hours* (Terms apply)
  • Assembly Required? - Yes - some assembly may be required
